HERMA
Leading performance. Smartly connected.

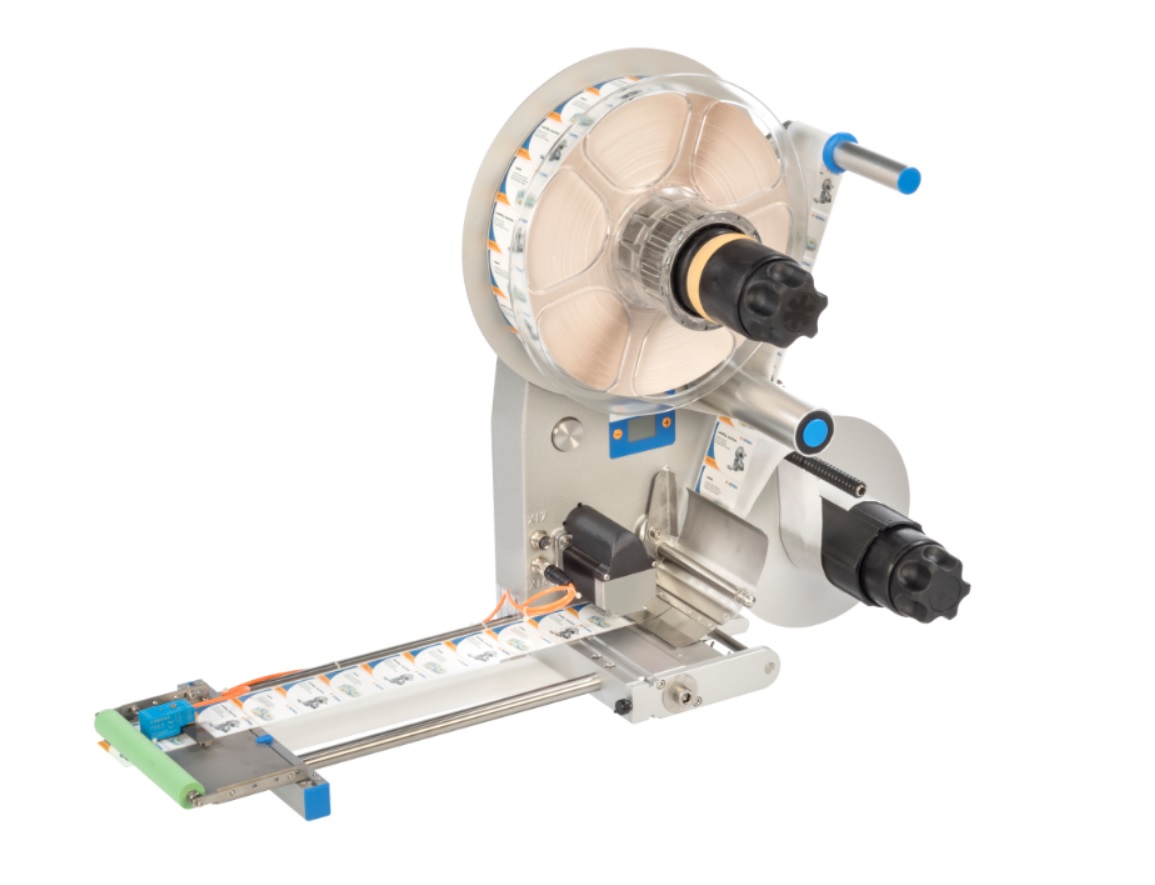

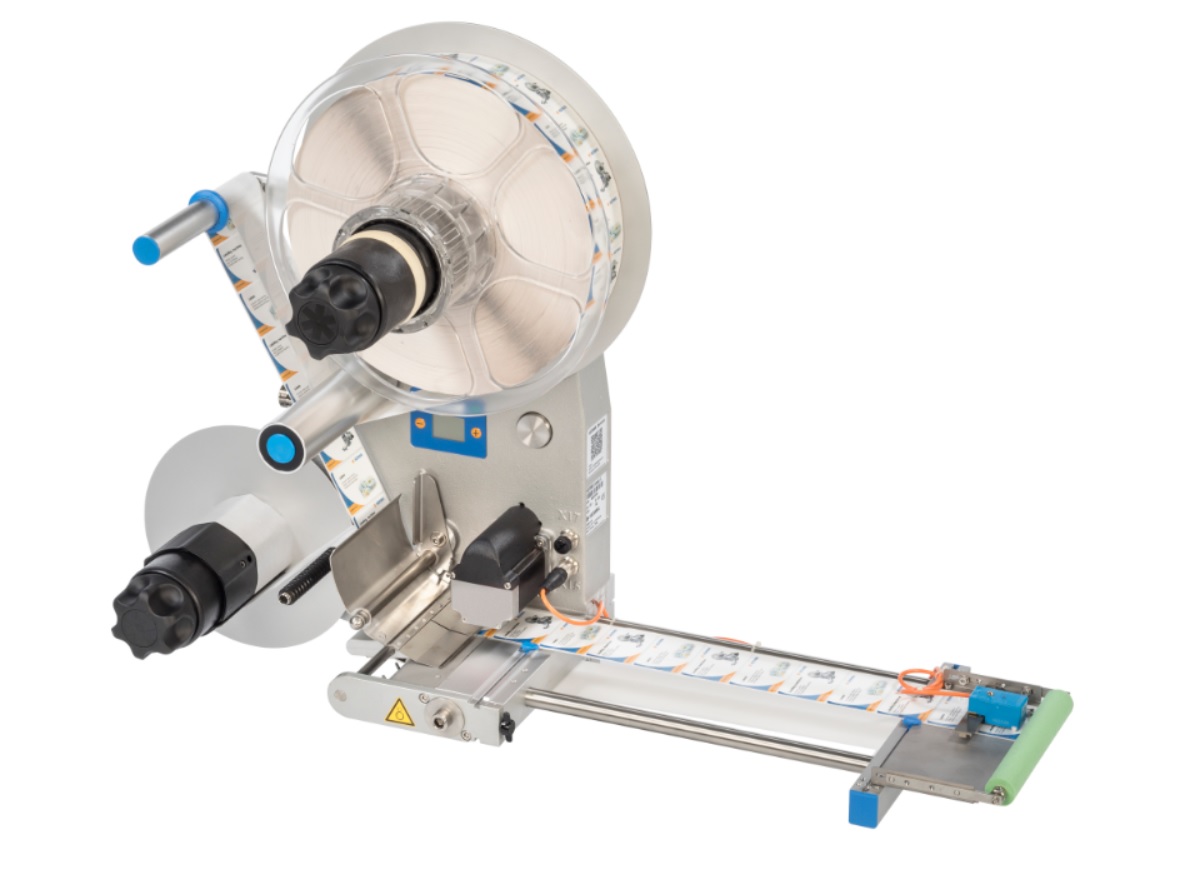

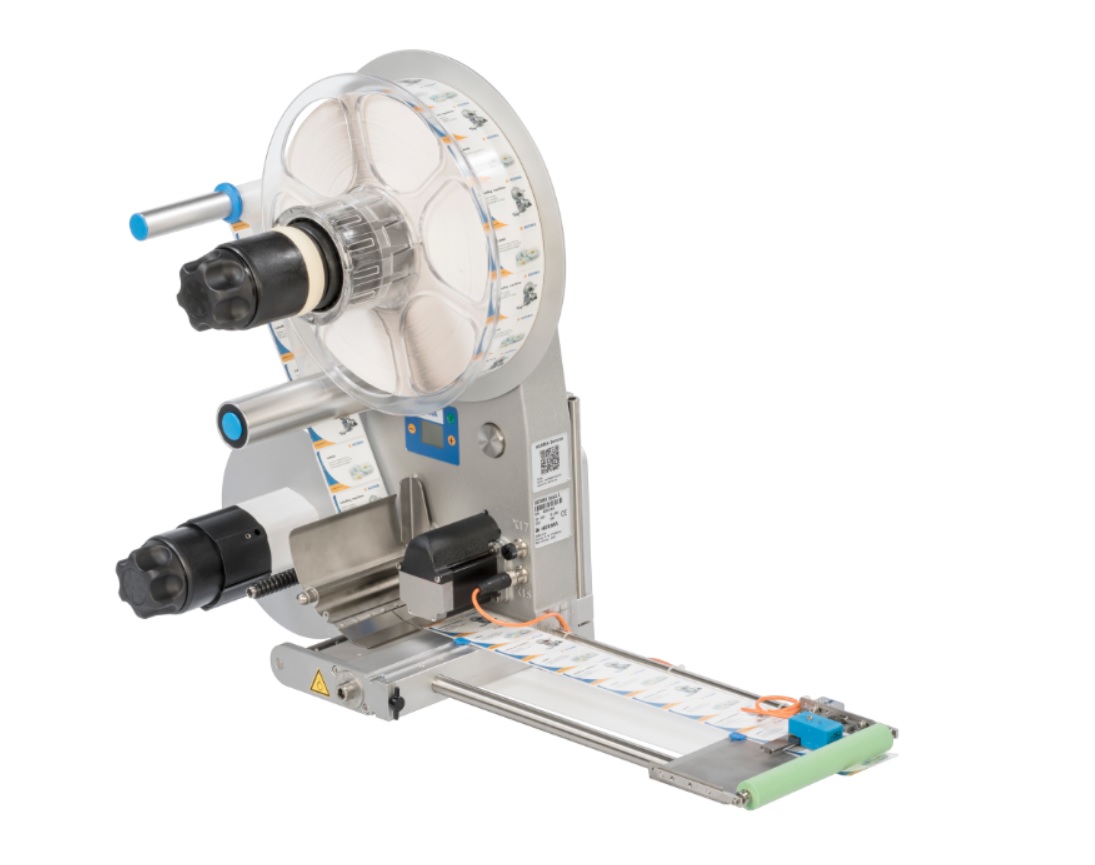

HERMA BASIC 어플리 케이터

Specification


Made in Germany, made by HERMA

자동차의 핵심은 엔진 이듯이 라벨 부착기의 핵심은 바로 라벨 어플리케이터 입니다.

이미 HERMA BASIC은 국내에서 1500대 이상 전국에 설치되어 사용되고 있습니다.


저희는 독일의 HERMA 社로 부터 HERMA 500을 비롯하여 HERMA Basic을 공급 받아

설치하고 사용하고 있습니다.


기존의 어떠한 라벨러 헤드와도 교체가 가능하며 콘트롤러가 일치형으로 되어 있어서

별도의 콘트롤러가 필요하지 않은 장점이 있습니다.




Label sizes can be adjusted from 12 x 12 mm to 160 x 400 mm.


Available label sizes:

12 x 12 mm to 160 x 400 mm; single-layer and multi-layer labels with a label thickness of up to 1.5 mm

Max. backing tape width:

164 mm

Label roll diameter:

300 mm (winding: inward/outward)

Label roll core:

Core 76 mm (optional: 40 mm, 45 mm)

Max. speed:

Adjustable up to 25 m/min

Label stop accuracy:

± 0.8 mm

Clearance:

300 mm (suitable for integration in printers e.g. hot foil printers)

Unwinder:

Mechanical

Winder:

Mechanical (regulated)

Design:

Left-hand and right-hand version

Label stop sensor:

Forked light barrier for non-transparent labels; optional FS03 sensor can be used for transparent labels

Control panel:

Keypad with display; languages available: German, English, French, Spanish

Controller:

Integrated in the applicator

IP protection type:

IP 40

Power connection values:

110 / 240V AC ±10%, 50 / 60 Hz; wide voltage input (automatic adjustment) available power cords: type B NEMA 5-15, 3-pin/ type E+F CEE 7/7

Mounting:

Mounting points identical to those of HERMA 400

Label transfer:

Adjustable: rigid dispensing plate with brush, roller or spring-mounted roller or optional pneumatic pivot beak

Fault display:

Shown in the display

Certi?cation:

CE conformity
